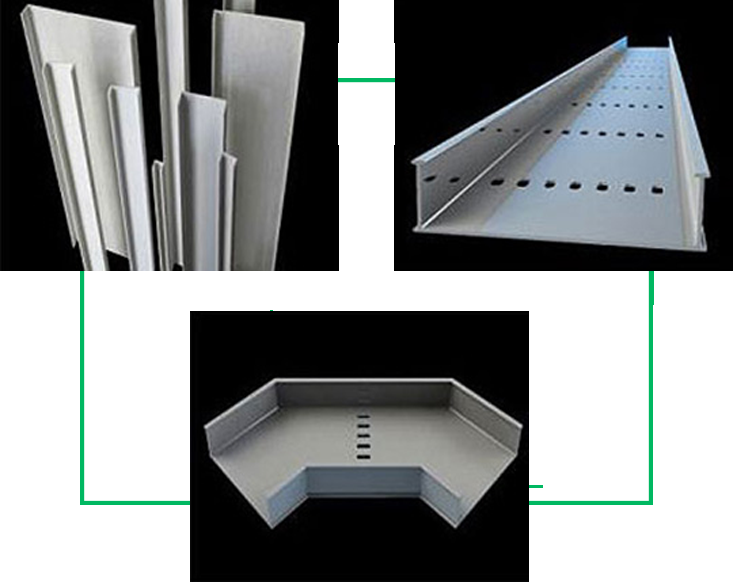

Fiberglass Perforated Cable Trays

FRP/GRP cable trays made by FTC is fabricated out of different pultruded sections of advanced polyester & vinelester resins, manufactured by automatic pultrusion machine.

FRP / GRP cable trays are good replacement of G.I / M.S cable trays, which tend to corrode, erode and spread heat thus leading to power interruptions.

On the other hand FRP cable trays safe, durable, cost effective and easy to install. FTC manufactures these cable trays as per NEMA / BIS / Consultants Specification.

Advantages of FRP / GRP Perforated Cable Trays Standard specification is available as per below table
Inside WidthLoad DesignMaterial Choice
50mm10kg/mtr.Polyester/Vinyl
75mm12kg./mtr.Polyester/Vinyl
100mm15kg/mtr.Polyester/Vinyl
150mm18kg/mtr.Polyester/Vinyl
200mm25kg/mtr.Polyester/Vinyl
300mm30kg/mtr.Polyester/Vinyl
450mm40kg/mtr.Polyester/Vinyl
500mm45kg/mtr.Polyester/Vinyl
600mm50kg/mtr.Polyester/Vinyl

Cable tray support system
Floor Mounted
Ceiling Mounted
Wall Mounted
